HMJC270/T/250/80/W1/70/PL1184

13 Selector Valve 4394-K10 Dwg: FMW31-1657B; Item 30

14 Stop Valve 81SVPH7350 Dwg: FMW31-1657B; Item 70

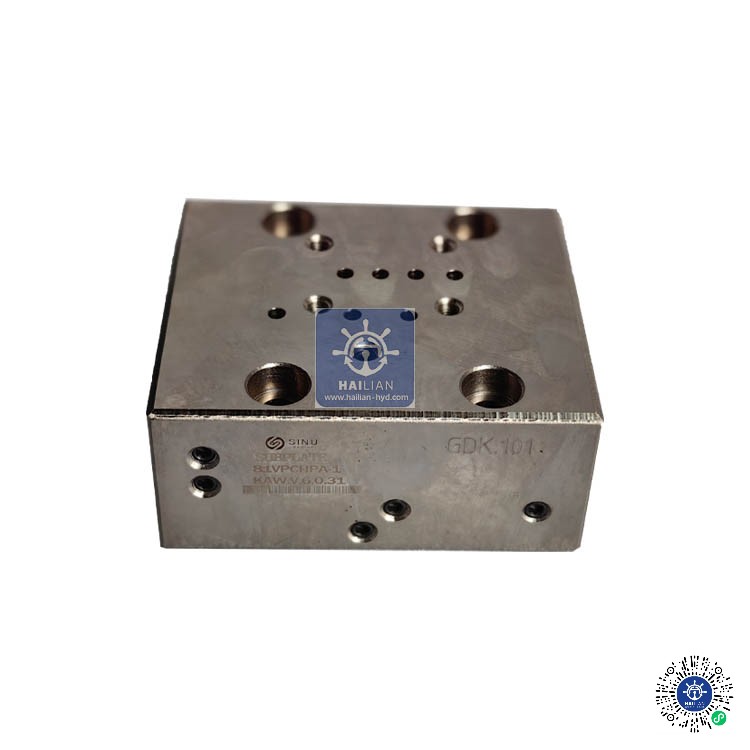

15 Subplate 81VPCHPA-1 Dwg: FMW31-1657B; Item 31

16 Mounting seals and screws kit DWG: FMW31-1657B

Windlass Hydraulic motor and valves

Name of Component   Windlass+Mooring Winch,

Model   HMJC270/T/250/80/W1/70/PL1184

Line No. Part Name Makers Reference Drawing Position

1 Bite Fitting BMC10-02G(PF1/4) Dwg: FMW31-1657B; Item 34 1

2 Blind Flange 698C163-911  Dwg: FMW31-1657B; Item 11 2

3 Check Valve Unit HIC-FJ15-A-04-12-M+HIC-FJ50-B-04-12 Dwg: FMW31-1657B; Item 51

4 Control Valve       KWV42PG-30-PCJ31/420/335/190-FX-3 Dwg: FMW31-1657B; Item 50

5 Counterbalance valve KCB40EAE/7SD/250-305-FX (PV040000 Dwg: FMW31-1657B; Item 40
